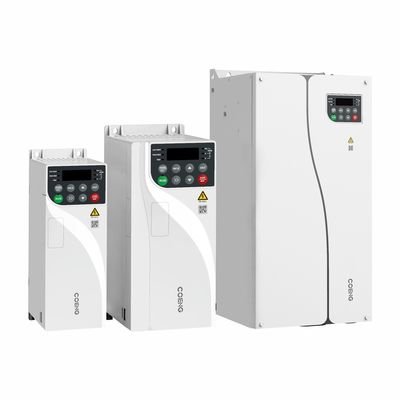

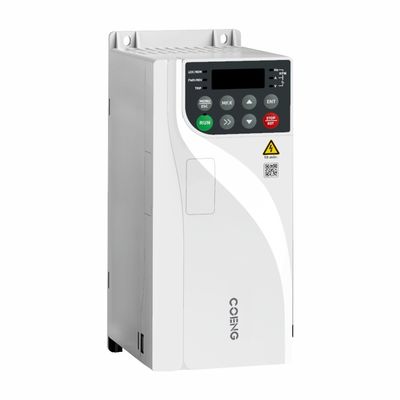

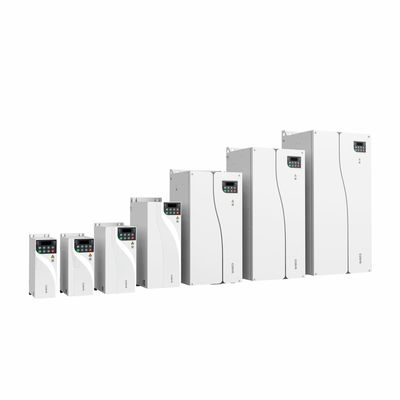

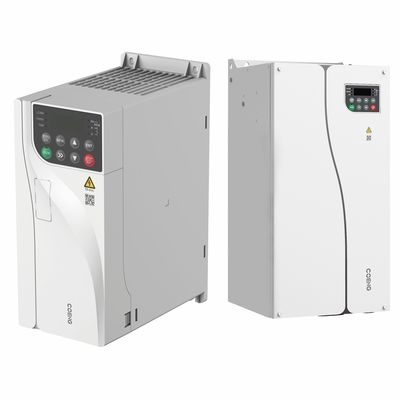

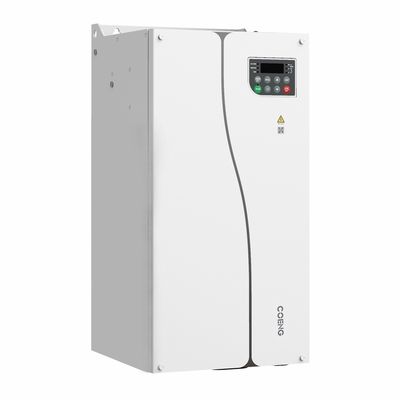

Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control

  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
  • Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control
Τόπος καταγωγής ΚΙΝΑ
Μάρκα COENG
Πιστοποίηση CE
Αριθμό μοντέλου HV350
Έγγραφο HV350.xlsx
Ποσότητα παραγγελίας min 1
Συσκευασία λεπτομέρειες Χαρτοκιβώτιο, περίπτωση κοντραπλακέ
Χρόνος παράδοσης 10-30 εργάσιμες ημέρες
Όροι πληρωμής L/C, T/T, Western Union
Δυνατότητα προσφοράς 20000SETS/YEAR

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Τάση εισόδου Η τάση εισόδου: 380V (-15%) έως 480V (+10%) Φάση: Τριφογενής Συχνότητα ισχύος εισόδου 50Hz/60Hz ± 5%
Τάση εξόδου 0V~Πρόταση εισόδου Συχνότητα εξόδου 0 ¢ 600 Hz
Τύπος κινητήρα κύριου ελέγχου Ασύγχρονος κινητήρας Πεδίο ταχύτητας κυριαρχικού ελέγχου 1:10 V/F, 1:100 OLVC, 1:1000 CLVC
Τρόπος κύριας χειραγώγησης V/F, OLVC ((Ανοιχτός κυκλικός έλεγχος διανυσμάτων), CLVC ((Κλειστός κυκλικός έλεγχος διανυσμάτων)
Επισημαίνω

sub-5ms torque response inverter

,

vector frequency inverter dynamic control

,

ultra-fast process control inverter
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Item Specification Description and Technical Data
Power input/output Input voltage Input voltage: 380V (-15%) to 480V (+10%) Phase: Three-phase
Input power frequency 50Hz/60Hz ±5%
Input voltage imbalance ≤3%
Output voltage 0V~Input voltage
Output frequency 0～600Hz
Master control performance Motor type Asynchronous motor
Control mode V/F, OLVC(Open-loop Vector Control)
Speed range 1:100 V/F; 1:200 OLVC
Starting torque OLVC: 150%(0.25Hz)
Torque precision ±5% (OLVC, above 5Hz)
Torque ripple ≤±5%, in Vector control mode
Speed stability OLVC, 0.2%
Torque response ≤5ms, in Vector control mode
Acceleration/deceleration time 0.0s~3200.0s; 0.0min~3200.0min
Torque boost 0.0%~30.0%
Overload capacity G type: 150% 1min/5min; 180%10s/5min; P type: 110% 1min/5min; 150% 10s/5min
V/F curve Straight-line type, multi-point type, V/F Half separation mode, V/F complete separation mode
Input frequency resolution Digital setting: 0.01Hz, Analog setting: maximum frequency *0.025%
Main functions Acceleration/deceleration curve Straight line and S-curve
Simple PLC, Multi-speed control 16 speed segments supported through control terminals
Automatic voltage regulation (AVR) Automatically keeps the output voltage constant when grid voltage varies within a certain range
Fixed length control Control with given length
Built-in PID Easily forms a closed-loop control system
Multi-motor switching Switchover between two groups of motor parameters to control the two motors
Virtual I/O 8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control
Overvoltage/Overcurrent stall control Automatic current and voltage limitation during operation preventing the inverter from tripping due to frequent overcurrent or overvoltage
Restart after power failure After power failure and restoration, the inverter waits for a set time before automatically running
Quick current limiting Avoids frequent overcurrent faults in the inverter
Power input/output Frequency setting method Keypad; terminal UP/DOWN; multi-reference; pulse reference; communication
Analog input terminals AI1; AI2: 0V~10V/ 0 (4)mA~20mA
Digital input terminals DI1-DI5, 5 programmable digital input terminals with opto-isolation, compatible with both
sinking/sourcing inputs.
DI5 supports high-speed pulse input with a maximum input frequency of 100kHz.
Digital output terminals Open-collector output; output voltage range: 0V~24V; current load capacity: 50mA.
DO1 supports high-speed pulse output with a maximum output frequency of 100kHz.
Analog output terminals 1-channel 0V ~ 10V/0(4)mA ~ 20mA
Relay output 1-channel Form C contact, NO+NC
Communication Communication protocols Modbus RTU (standard configuration); Profibus-DP; Profinet IO; CANopen; Modbus TCP/IP; Ethercat; EtherNet/IP (optional configuration)
Ambient requirements Altitude ≤1000m: no need for derating
1000~3000m: current derating by 1% per 100m increased
Ambient temperature -25℃～+40℃ (Running with derating allowed between 40~55)
Humidity 15% ~ 95%, No condensation
Vibration 3M3, IEC60721-3-3
Storage temperature −40°C~+70°C
Installation place Indoor, without direct sunlight, free from flammable, corrosive gases, liquids, and conductive particles.
Optional accessories Communication expansion card, I/O terminal expansion cards
Protections Protection against short circuit , overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc.
Installation method Installed in a cabinet
Protection rating IP20
Cooling method Air cooling
Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control 0 Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control 1 Ultra-Fast Sub-5ms Torms Torque Response for Superior Dynamic Process Control 2

  1. Thailand
    Streamline automotive assembly lines with the inverter’s fast digital I/O and pulse reference inputs. Its overload capacity and easy maintenance reduce costs in Thailand’s manufacturing hubs.

  2. Vietnam
    Adapt to rapid industrial growth with the inverter’s flexible communication options (Modbus RTU, Profinet). The speed stability and torque boost features support Vietnam’s textile and electronics sectors.

  3. Poland
    Enhance metalworking and machinery with the inverter’s precise analog outputs and encoder compatibility. The IP20 rating and derating functionality ensure durability in Poland’s industrial zones.

  4. Netherlands
    Support sustainable operations with the inverter’s energy-efficient modes and compliance with IEC standards. Its compact design and plug-and-play accessories fit Netherlands’ logistics and port equipment.

  5. Sweden
    Meet high environmental standards with the inverter’s low harmonic distortion and eco-cooling technology. The reliable torque control and vibration resistance suit Sweden’s paper and pulp industries.

  6. Norway
    Operate seamlessly in fjord and offshore settings with corrosion-resistant components and wide temperature ranges. The inverter’s PROFINET IO and failsafe features align with Norway’s maritime and oil sectors.
